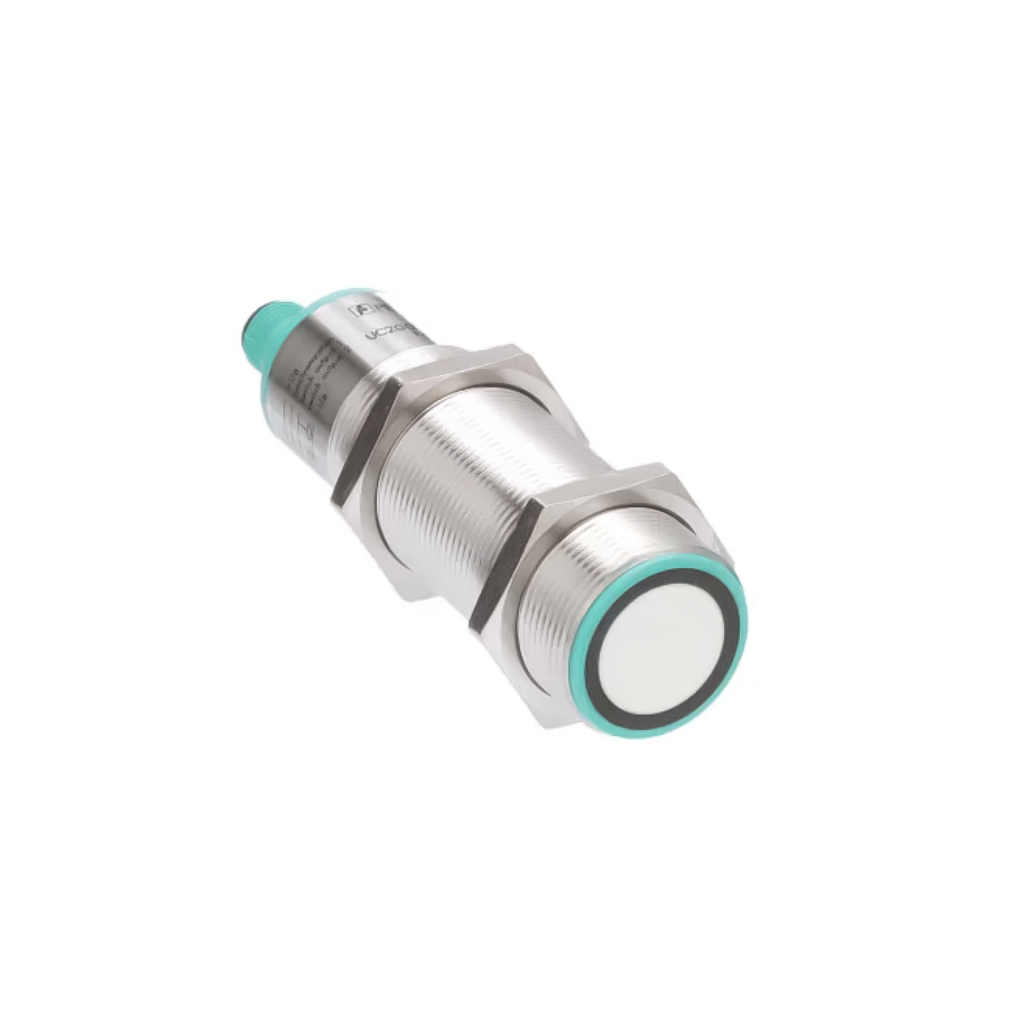

Sensor Ultrasonico 30GM

Detection range: 30…500 mm
Adjustment range: 50…500 mm
Blind Zone: 0…30 mm
Standard Target Plate: 100 mmx100mm
Transducer Frequency: Approx. 380KHZ
Response delay: Approx. 50ms
Operating voltage: 10…30 VDC,Ripple10%PP
No-load current: ≤50 mA
Rated Operating Current: 200mA, Short Circuit/Overload Protection
Voltage Drop: ≤2.5V
Repeatability: ≤0.5V% Switching points
Hysteresis range: 1% of the set switching distance
Switching Frequency: 1.0Hz
Temperature Drift: <2% FS
Ambient temperature: -25 ℃…+70℃(248…343 K)
Protection class: IP65
